sliver/ gold plated ntc chip thermistor chip resistor gold chips leadless ceramic ntc bare chip

FOB Reference Price:Get Latest Price
$0.10 - $2.00 / Pieces | 10000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
EXSENSE
Model Number:
DT103F3435B
Type:
Thermal Resistor
Technology:
Ceramic Composition
Package Type:
epoxy resin coating
Resistance:
1k ohms - 200k ohms
Resistance Tolerance:
10%-0.15%
Rated Power:
15mW
Temperature Coefficient:
3950k
Operating Temperature:
-50-200 degrees celsius
chip length:
0.3-4.0mm
chip wide:
0.3-4.0mm
chip height / thickness:
0.2-0.8mm
smd chip:
0201/0402/0603/0805
electrode:
silver or gold plated on both bottom
material:
ntc ceramic
accuracy:
+/-1% ~5%
operating range:
-50~200c
Structure:
rectangular or square type
Certificates:
ROHS
Supply Ability
Supply Ability:
3000000 Piece/Pieces per Week smd chip
Packaging & Delivery
Packaging Details
5000pcs or 10000pcs in a vacuumed polybag. accept customized packing method.
Port
HK, Shenzhen, Shanghai

DT series NTC thermistor is the newest development in die(bare )chip NTC thermistors. The miniature package is designed for hybrid applications where bonding wire or Au/Sn solder is used as the attachment method. The terminations on the top and bottom of the thermistor are gold (Au) plated for the ultimate in hybrid designs and construction.

Product Effects

1. High accuracy tolerances to +/-0.05 centidegree
2. Excellent thermal cycle endurance

3. Long life span with stable performance

4. High stability

5. Operating ranges from -50 -- 200 centidegree

Application



1. Bonding(Infrared thermal reactor, IGBT, thermal printer head, integrated module,

   semiconductor module, power etc)

2. Temperature sensor, medical measurement
3. Home appliance/smart home, solar home appliance, etc
4. Automotive air conditioner and engine, etc



Product Overviews





Parameters



Resistance1k, 2k,6.8k, 5k,10k,30k, 47k,50k,100kohms
Accuracy0.3%, 0.5%, 1%,2%,3%,5%
B constance3380, 3435,3935,3950,4100,4200,
Size0.3*0.3,0.5*0.5, 0.75*0.75mm,1*1MM
Thickness0.35mm
Dissipation factor2.0S
Thermal time contance2Sec
Operating temperature-40-125DegC
special parameter and size can be customer made
Part No.R25 (KΩ)B(K)Rated Power @25mwDissipation factor(δ)Thermal time
(mW/)constant (s)
DT1023150A1.0KΩ3150 K152.515
DT2023150A2.0KΩ3150 K152.515
DT5023274A5.0KΩ3274K152.515
DT5023435B5.0KΩ3435K152.515
DT5023470A5.0 KΩ3470K152.515
DT5023950A5.0KΩ3950K152.515
DT1033274A10.0KΩ3274K152.515
DT1033435B10.0KΩ3435K152.515
DT1033470A10.0KΩ3470K152.515
DT1033950A10.0KΩ3950K152.515
DT1034100A10.0KΩ4100K152.515
The B-tolerance is ±1% when R--tolerance within ±3%, others are ±2%.
Special part number could be customizing.

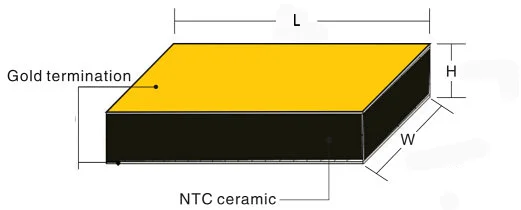

Dimention


Package



1.Blue film
2.Pallets
3.Bottles
4.Bags
