50k cob wire bonding silver electrode thermistor chip

FOB Reference Price:Get Latest Price
$0.06 - $0.30 / Pieces | 10000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
EXSENSE
Model Number:
DT503F3435B
Type:
Thermal Resistor
Technology:
Ceramic Composition
Package Type:
Surface Mount
Resistance:
1-100k ohms
Resistance Tolerance:
1%, 2% ,3%, 5%
Rated Power:
15 mW
Operating Temperature:
-40 ℃ ~ +200 ℃
Product Name:
NTC Thermistor Chip
resistance:
10k 5k 50k 100k ohms
accuracy:
1%-5%
Operating temperature:
-20-200c
Material:
Ceramic
Color:
silver/ gold
Certificates:
ROHS
Application:
bonding
B-Value:
3435,4200,3950
Size:
0.5*0.5*0.2
Supply Ability
Supply Ability:
3000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
10000pcs in a vacuum bag, then box and carton.
Port
Zhaoqing, Shenzhen, Guangzhou
Product Effects



1.Adopt silver electrode, high cost performance
2.Gold/silver wire bonding
3.High stability& reliabililty
4.Small size,fast response
5.Accuracy reaches to ±0.3%
6.Customized sizes and parameters are available
Product Overviews





Parameters



Resistance1k, 2k,6.8k, 5k,10k,30k, 47k,50k,100kohms
Accuracy0.3%, 0.5%, 1%,2%,3%,5%
B constance3380, 3435,3935,3950,4100,4200,
Size0.3*0.3,0.5*0.5, 0.75*0.75mm,1*1MM
Thickness0.35mm
Dissipation factor2.0S
Thermal time contance2Sec
Electrode Ag, Au
Operating temperature-40-125DegC
special parameter and size can be custom made
Part No.R25 (KΩ)B(K)Rated Power @25mwDissipation factor(δ)Thermal time
(mW/)constant (s)
DT1023150A1.0KΩ3150 K152.515
DT2023150A2.0KΩ3150 K152.515
DT5023274A5.0KΩ3274K152.515
DT5023435B5.0KΩ3435K152.515
DT5023470A5.0 KΩ3470K152.515
DT5023950A5.0KΩ3950K152.515
DT1033274A10.0KΩ3274K152.515
DT1033435B10.0KΩ3435K152.515
DT1033470A10.0KΩ3470K152.515
DT1033950A10.0KΩ3950K152.515
DT1034100A10.0KΩ4100K152.515
The B-tolerance is ±1% when R--tolerance within ±3%, others are ±2%.
Special part number could be customizing.

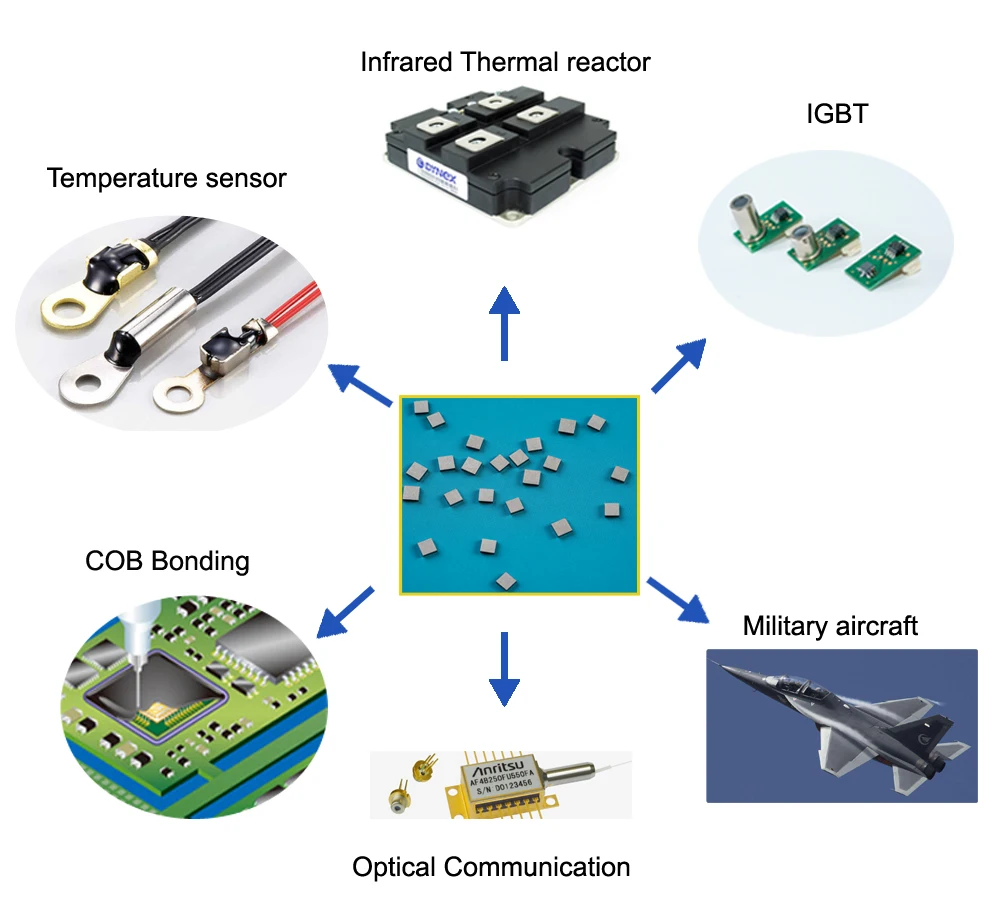

Application



1.Bonding(Infrared thermal reactor, IGBT, thermal printer head, integrated module,

semiconductor module, power etc)

2.Temperature sensor, medical measurement
3.Home appliance/smart home, solar home appliance, etc
4.Automotive air conditioner and engine, etc

Dimention





Package
