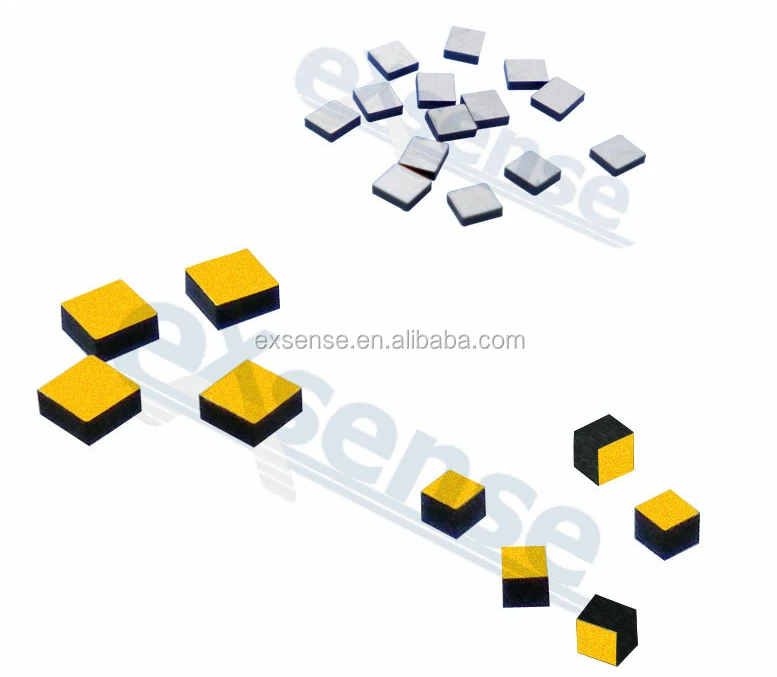

High quality customized gold electrode NTC thermistor bare chip

FOB Reference Price:Get Latest Price
US $0.081-0.33 / Pieces | 10000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
EXSENSE
Model Number:
DT103F3950A
Usage:
Temperature Sensor
Theory:
Resistance Sensor
Output:
Analog Sensor
Operating Temperature:
-50~200℃
Resistance Tolerance:
±1%~±5%
Electrode:
sliver
Application:
COB boding, igbt, temperature sensor
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1000pcs in a vacuum bag, glass bottle and blue thin.
Port
Hong Kong, Shenzhen, Shanghai, Guangzhou
Lead Time :
10- 15 days

Gold Electrode NTC Thermistor Bare Chip1-2.jpg

Product Effects



1.Adopt silver electrode, high cost performance
2.Gold/silver wire bonding
3.High stability& reliabililty
4.Small size,fast response
5.Accuracy reaches to ±0.3%
6.Suitable for all kind of encapusalation
7.Customized sizes and parameters are available

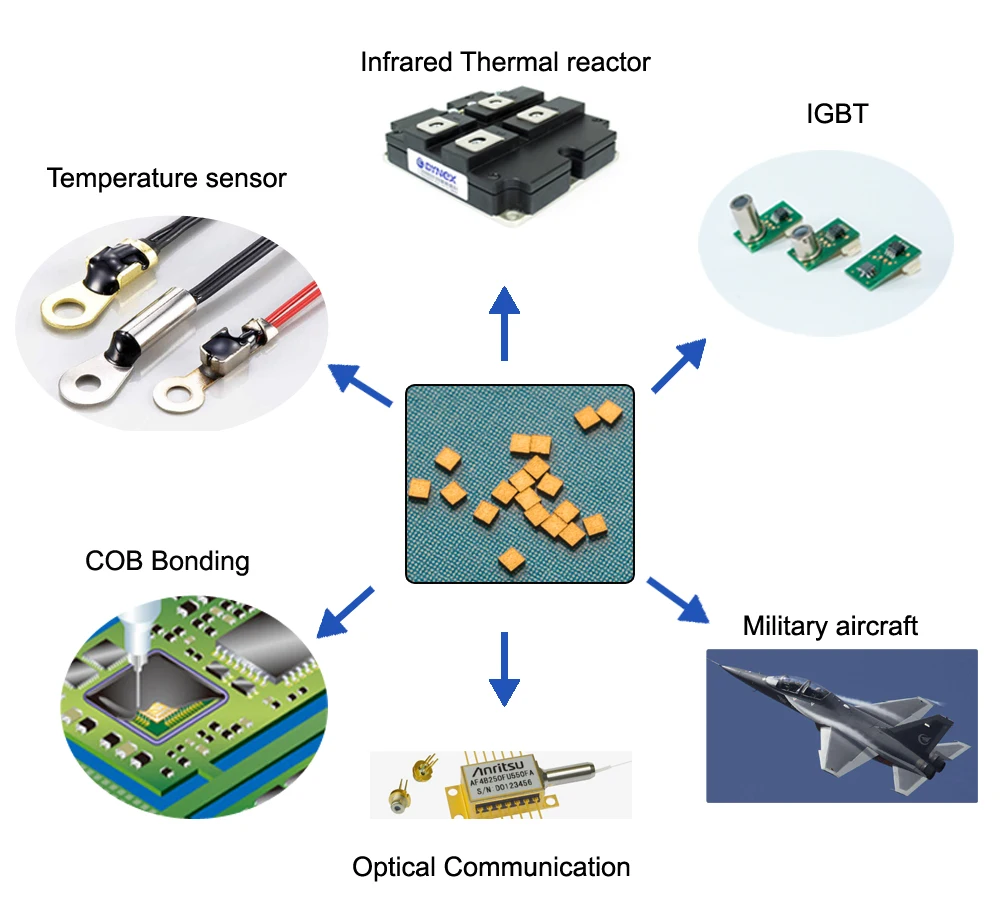

Application



1.Bonding(Infrared thermal reactor, IGBT, thermal printer head, integrated module,

 semiconductor module, power etc)

2.Temperature sensor, medical measurement
3.Home appliance/smart home, solar home appliance, etc
4.Automotive air conditioner and engine, etc

Product Overviews


Parameters



Resistance1k, 2k,6.8k, 5k,10k,30k, 47k,50k,100kohms
Accuracy0.3%, 0.5%, 1%,2%,3%,5%
B constance3380, 3435,3935,3950,4100,4200,
Size0.3*0.3,0.5*0.5, 0.75*0.75mm,1*1MM
Thickness0.35mm
Dissipation factor2.0S
Thermal time contance2Sec
Operating temperature-40-125DegC
special parameter and size can be customer made
Part No.R25 (KΩ)B(K)Rated Power @25mwDissipation factorThermal time
(mW/)constant (s)
DT1023150A1.0kKΩ3150 K152.515
DT2023150A2.0KΩ3150 K152.515
DT5023274A5.0KΩ3274K152.515
DT5023435B5.0KΩ3435K152.515
DT5023470A5.0KΩ3470K152.515
DT5023950A5.0KΩ3950K152.515
DT1033274A10.0KΩ3274K152.515
DT1033435B10.0KΩ3435K152.515
DT1033470A10.0KΩ3470K152.515
DT1033950A10.0KΩ3950K152.515
DT1034100A10.0KΩ4100K152.515
The B-tolerance is± 1% when R--tolerance within± 3%, others are ±2%.
Dimention

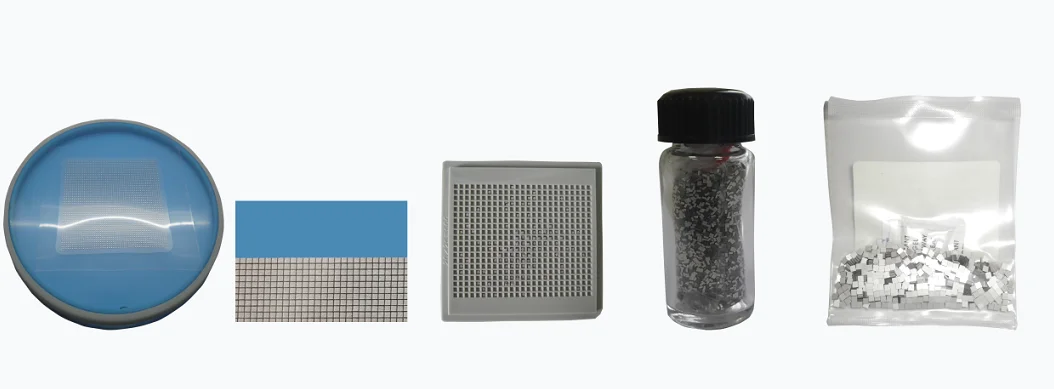

Package



1.Bule Film type
2.Pallet
3.Glass bottle.
4.Bag
