10kohms, 100kohms 1% small size 0.3mm leadless ntc thermistor

FOB Reference Price:Get Latest Price
US $0.06-0.3 / Pieces | 10000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
EXSENSE
Model Number:
DT103F4100A
Type:
Thermal Resistor, DT series
Technology:
Ceramic Composition
Package Type:
Surface Mount
Resistance:
1-100k ohms
Resistance Tolerance:
1%, 2%, 3%, 5%
Rated Power:
15 mW
Operating Temperature:
-40 ℃ ~ +200 ℃
Product Name:
NTC Thermistor Chip
resistance:
10k ohms 100Kohms
accuracy:
1%-10%
size:
0.3mm*0.3
thickness:
0.4mm-0.7mm
Material:
Ag, Au surface
Color:
Siver/ gold
Certificates:
ROHS
Application:
bonding,laser diodes, optics communication
Supply Ability
Supply Ability:
3000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
100pcs in a vacuum bag, then box and carton.
Port
Zhaoqing, Shenzhen, Guangzhou

Features:

1. High accuracy tolerances to +/-0.1°C

2. Excellent thermal cycle endurance

3. High stability

4. Operating ranges from -50°C ~ +200°C

Application:

1.Bonding, laser diodes, optics communication application

2.Hybrid designs and construction, bonding

3. High Precision NTC Temperature sensor

4. Infrared thermopiles

5. Thermal printer



Parameter list:

Resistance @ 25°C

5KΩ

10KΩ

30KΩ

50KΩ

100KΩ

200KΩ

Accuracy

±0.1°C

±0.2°C

±1%

±2%

±3%

±5%

B value

3380K

3435K

3470K

3935K

3950K

3977K

Wire length

7

10

17

30

40

custom-made

Wire sort

CP

Special customized parameters are available.

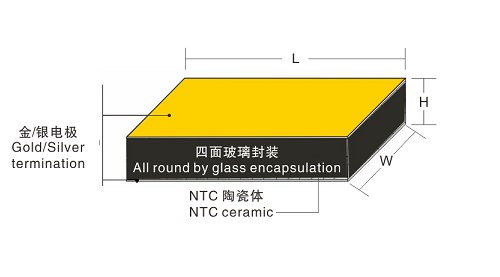

1.Structure: rectangular or square type

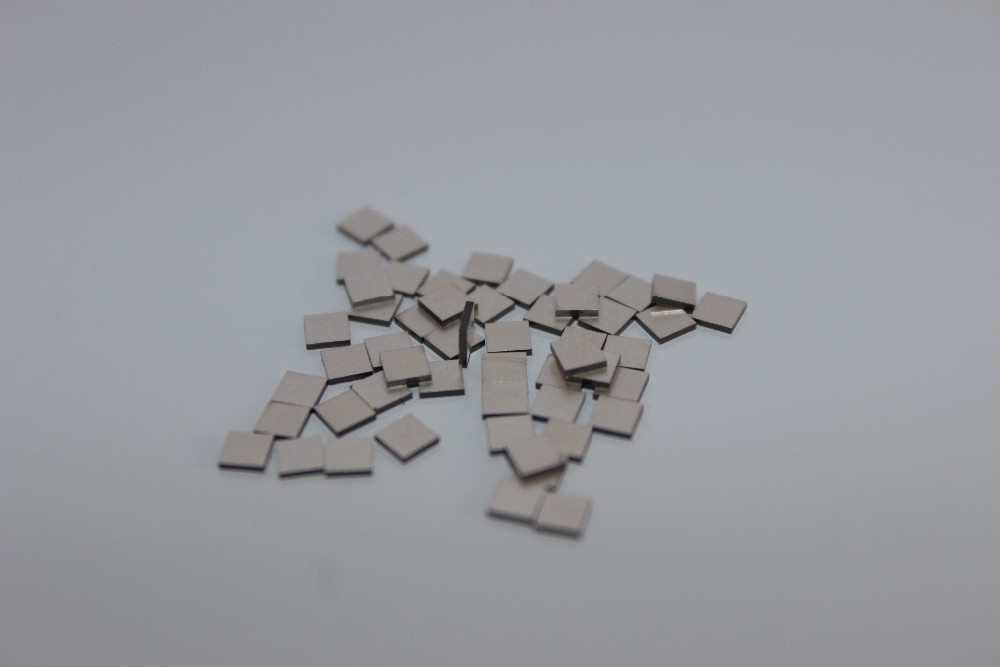

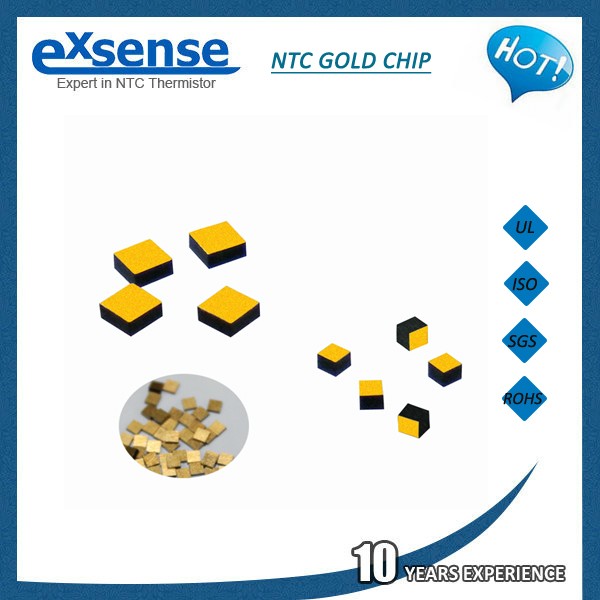

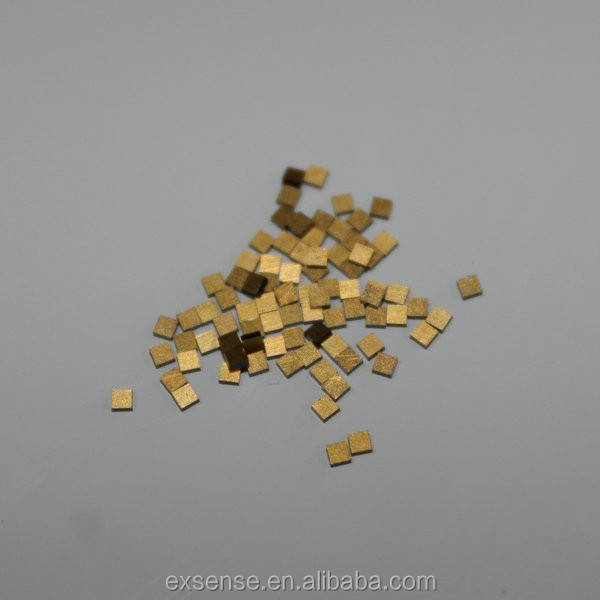

2.Termination: silver or gold type

3.Dimension: length 0.5-2.0mm, wide 0.5-2.0mm, height 0.3-0.8mm

4.Resistance at 25°C: 1Kohm-200Kohm

5.Beta value at 25°C/50°C: 3200K-4400K

6.Accuracy of resistance & Beta value: 0.3%-10%; 0.1°C highest.

7.Rated power at 25°C: 15mW

8.Dissipation factor: 2.5mW/°C minimum

9.Thermal time constant: 5Sec maximum

Size:







Company Information









Our Services

We promise this product can be used for 5 years at least by normal use.

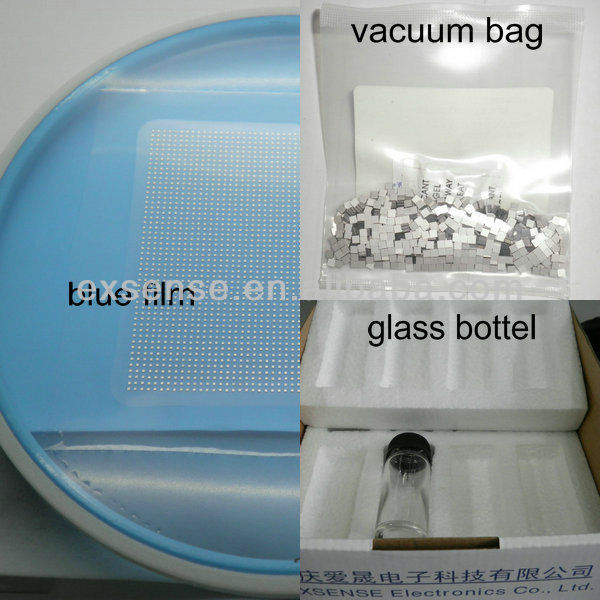

Package:



1. Bulk in vacuum bag. 2. Bulk in glass bottle. 3. Blue thin.
